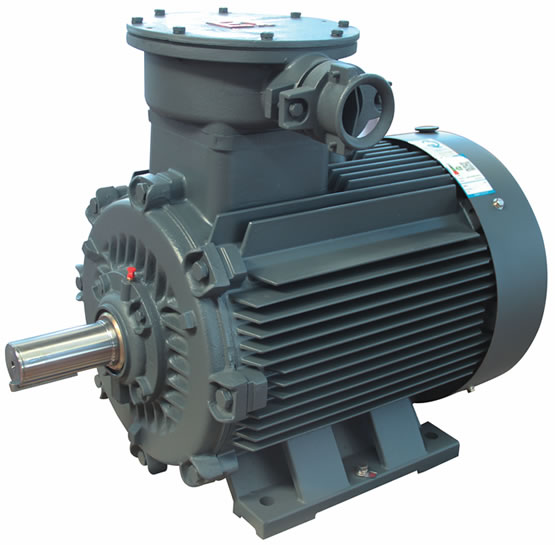

Products Name：YBX3 series high-efficiency flameproof three-phase asynchronous motor

Executive standard：JB/T12628-2016、Q/1082SHL055—2017

Main parameters: Power range: 0.18~315kW; Base No.: 80-355; Voltage: 380V, 660V, 380V/660V; Frequency: 50Hz; Cooling mode: IC411; Protection grade: IP55; Insulation grade: 155 (F) insulation; Ambient temperature: - 15 ° C to+40 ° C; Altitude: The altitude shall not exceed 1000 meters。

Products Info：YBX3 series flame-proof high-efficiency three-phase asynchronous motor conforms to the three-level efficiency standard specified in GB18613-2020 Limits and Grades of Motor Energy Efficiency. According to the requirements of Explosive Atmospheres Part 1: General Requirements for Equipment (GB/T 3836.1-2021) and Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosure "d" (GB/T 3836.2-2021), it is made into flameproof type, with the explosion-proof marks of ExdbIIBT4Gb and ExdbIICT4Gb, which are respectively applicable to the equipment in the places where Class II B and Class C T1~T4 combustible gases or steam and air form explosive mixtures, It is used as general power equipment。
