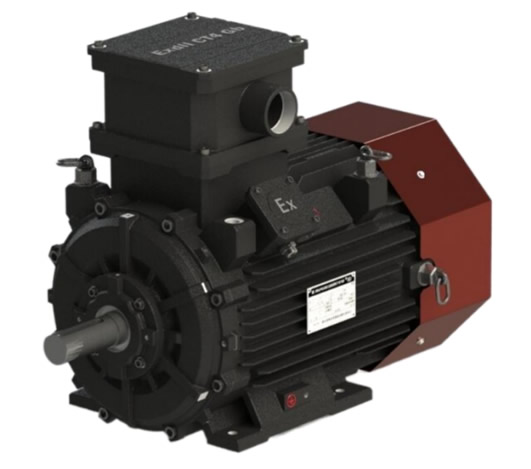

YFB5 series dust explosion-proof high-efficiency three-phase asynchronous motor


Products NameYFB5 series dust explosion-proof high-efficiency three-phase asynchronous motor

Executive standardQ/1082SHL110-2021

Main parameters: Power range: 0.55~355kW; Base No.: 80-355; Voltage: 220V, 380V, 660V, 220/380V, 380/660V; Frequency: 50Hz; Cooling mode: IC411; Protection grade: IP65; Insulation grade: 155 (F) insulation; Ambient temperature: - 15 ° C to+40 ° C; Altitude: The altitude shall not exceed 1000 meters

Products InfoYFB5 series dust explosion-proof high-efficiency three-phase asynchronous motor (frame number 80~355) conforms to the Class I efficiency standard specified in GB18613-2020 Motor Energy Efficiency Limits and Energy Efficiency Grades. This series of motors shall comply with the following standards: GB/T 3836.1-2011 Explosive Atmospheres - Part 1: General Requirements for Equipment GBT3836.31-2021 Explosive Atmospheres - Part 31: Equipment Protected by Dust Ignition-proof Enclosure "t". The explosion-proof mark of the motor is Extb CT130 Db. The enclosure protection grade is IP65. It is applicable to places with explosive dust mixture
