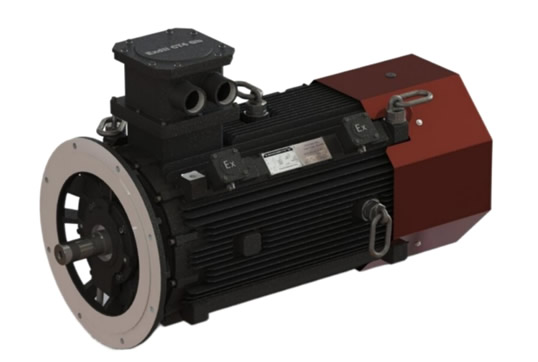

Products Name：YBX5 series high-efficiency flameproof three-phase asynchronous motor

Executive standard：Q/1082SHL113—2022

Main parameters: Power range: 0.75 ～ 355kW; Base No.: 80-355; Voltage: 380V, 660V, 380V/660V; Frequency: 50Hz; Cooling mode: IC411; Protection grade: IP55; Insulation grade: 155 (F) insulation; Ambient temperature: - 15 ° C to+40 ° C; Altitude: The altitude shall not exceed 1000 meters。

Products Info：YBX5 series flame-proof high-efficiency three-phase asynchronous motor conforms to the Class I efficiency standard specified in GB18613-2020 Limits and Grades of Motor Energy Efficiency. According to the requirements of Explosive Atmospheres Part 1: General Requirements for Equipment (GB/T 3836.1-2021) and Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosure "d" (GB/T 3836.2-2021), the explosion-proof type is made, with the explosion-proof mark of ExdbIICT4Gb, which is applicable to the equipment in the area of Class II, Class C, Groups T1 to T4 combustible gas or explosive mixture formed by steam and air, and used as general power equipment。
